A light weight, compatible, and flexible -196°C automated LN vapor-phase storage system.
Realize automatic whole rack in and out of storage, simple operation and high efficiency; It supports the mixed storage of SBS standard racks in various specifications, like cryo tubes、racks and cryo bags, etc.
Dimensions (WDH): ≤1050(W)x1200(H)x2350(D)mm/≤3.44(W)x3.94(H)x7.71(D)ft
Weight ≤ 820kg
Storage Capacity: Cryotubes: ≥22,400 (1mL)
≥12,900 (2mL)
Cryo Bags: ≥890 (50mL)
Cryo Boxes: ≥160 (10*10)
Voltage/Frequency/Current: 220V / 50HZ / 10 A
Standby Power: ≤ 150W
Operating Power: ≤ 200W
Installation Power: ≤ 750W
Product Feature
C-type structure, light-rail series connection
Support light-rail loading for precise device connection, steady transportation of samples, rapid and successive deposit & withdrawal.
Cassette rack structure
The cassette rack structure for rapid sample batch access.
Vacuum negative pressure single tube-picking
Vacuum pneumatic suction head, precise single suction with the suction head reaching directly to the bottom samples, gentle operation ruling out errors, guarantee the safety of unconcerned samples.
Oxygen-free LN storage environment
One-touch automatic LN2 refill, LN2 piping can be connected for automatic replenishment.
Lightweight body, convenient to transport, install, maintain.
Supports mixed storage of SBS standard racks in various specifications, customization is available for other sample boxes.
Dehumidification and purification, no frost
Achievement of isolation between liquid nitrogen and samples, anti contamination well structures, avoid cross contaminatio, no frosting.
Multiple alarm, automatic replenishment
The system provides an open API interface to integrate data with LIS/HIS/CIS systems.
Traceability of whole-process information
Intelligent database management system, real-time date recording, process traceability.
Related cases

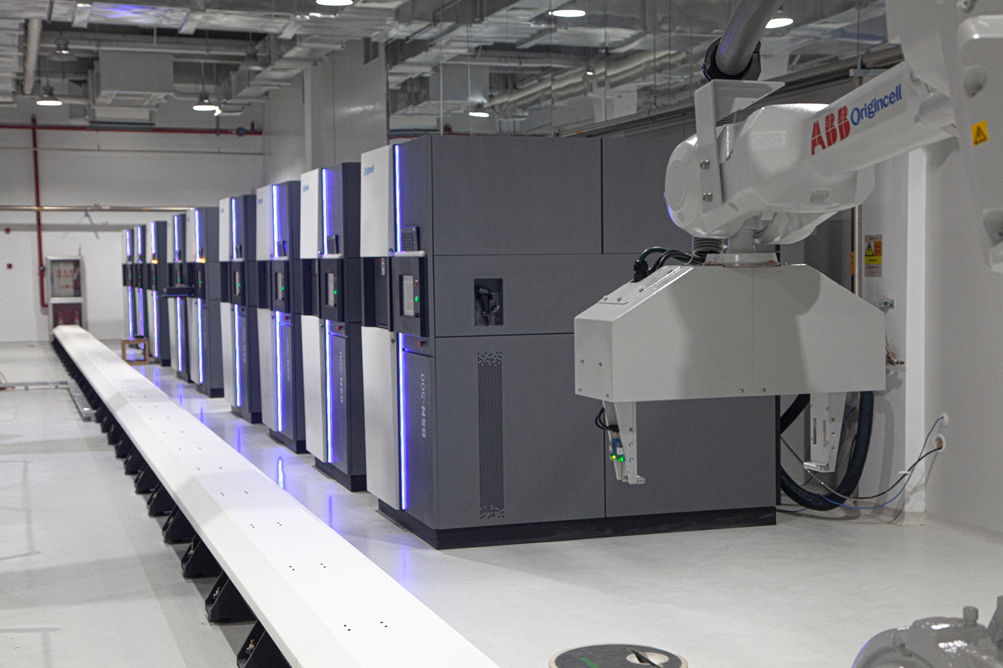

Beijing Haote Biotechnology
北京豪特生物區塊鏈生命銀行：基于區塊鏈技術底層技術的5G AI智能無人值守存儲庫。

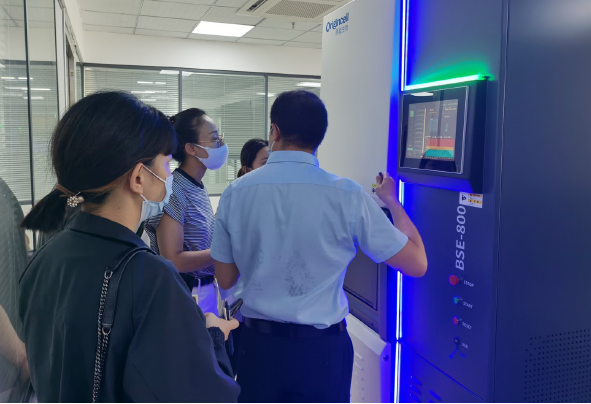

Origincell National Cell Bank Demonstration Center
國際標準化、專業化、智能化、全自動無人值守5G細胞庫；
提供高品質、低成本、臨床級的第三方細胞存儲服務；
全國自動化細胞庫標準化、智能化、產業化建設的可復制性示范樣板。

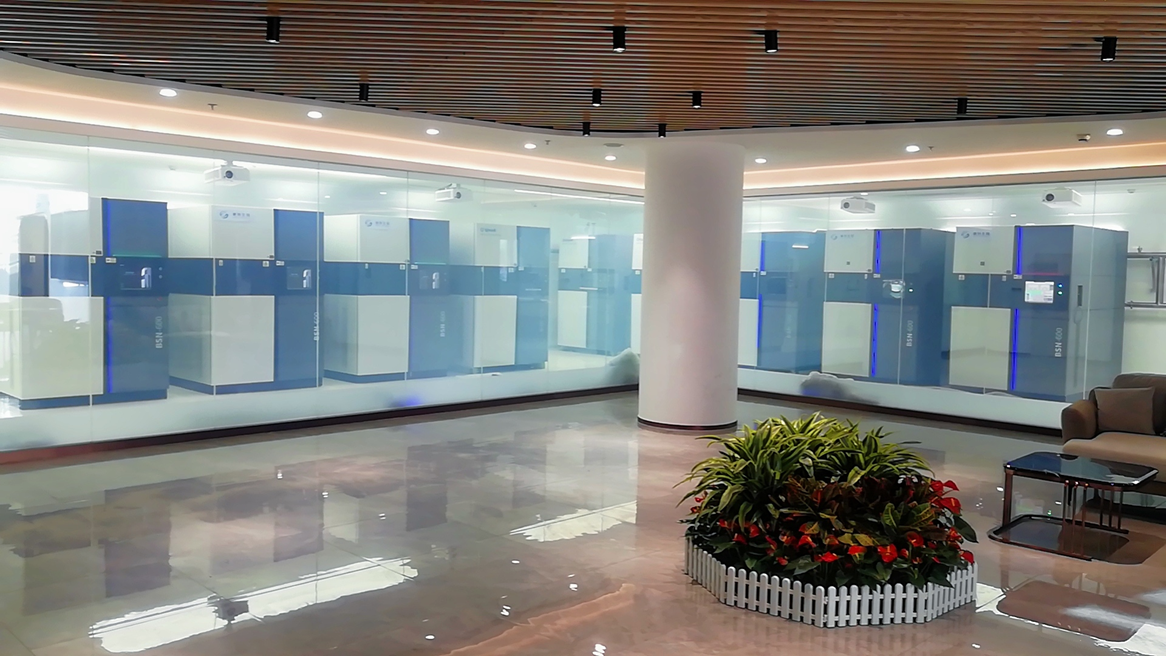

National Cancer Center (Cancer Hospital Chinese Academy of Medical Sciences)
國家癌癥中心的自動化超低溫生物樣本存儲庫區，用于存儲來源于醫院病患者的病理樣本，服務于醫院各科室及關聯單位

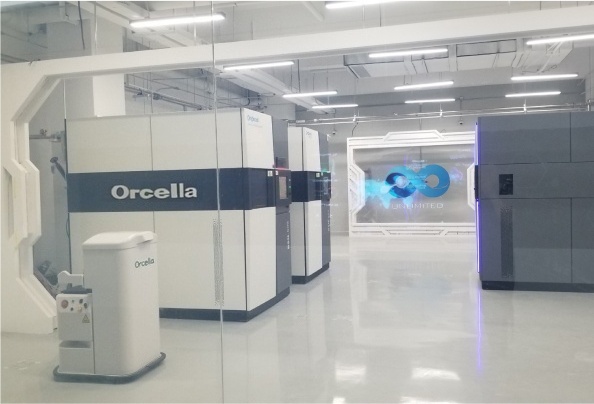

Renji Hospital of Shanghai Jiaotong University School of Medicine
仁濟醫院臨床級無人值守全自動氣相液氮生物樣本庫，滿足仁濟醫院對于大批量、高質量、安全可靠存儲珍貴生物樣本資源及臨床“活細胞”長期存儲的需求。

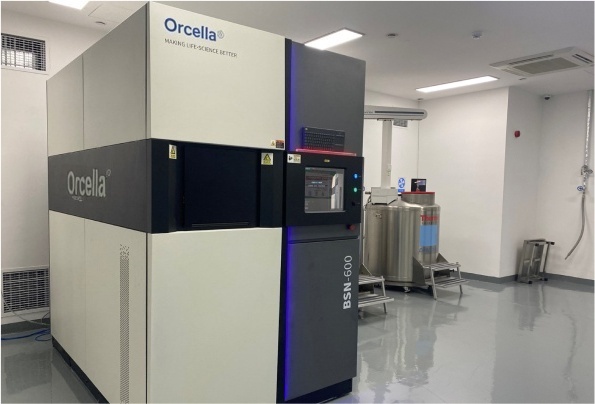

Qingdao Zhongkang Origincell Laboratory
青島中康原能細胞實驗室的自動化氣相液氮細胞存儲區，實現細胞生物樣本從入庫到出庫全流程自動化操作，做到無人值守、遠程監控。

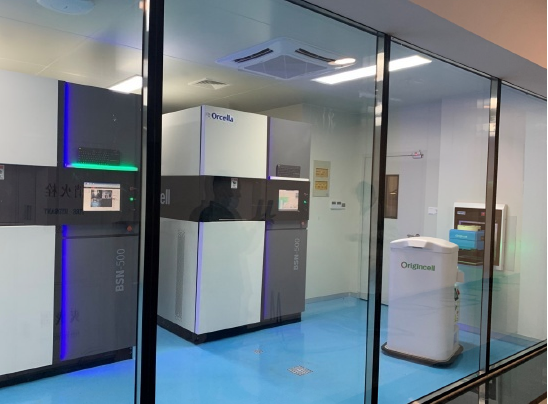

Yinfeng Biological Group, Qilu Cell
銀豐生物集團麾下齊魯細胞的全自動無人值守5G細胞庫，用于存儲人體免疫細胞和間充質干細胞。
